Introduction
Troubleshooting instrumentation and electrical systems represents one of the most critical skill sets in modern industrial operations. When sensors fail, control loops become unstable, or electrical equipment malfunctions, the ability to systematically diagnose and repair these interconnected systems determines whether a facility experiences minor delays or costly shutdowns. Unlike other types and other areas of engineering, such as computer engineering which focus on a single component or a narrower field, instrumentation and electrical (I&E) work involves a broader application of technology and troubleshooting across multiple domains. This practical guide delivers the diagnostic methodology that instrumentation technicians and electrical engineering professionals need to identify root causes quickly and implement lasting solutions.
PLC Construction is the company providing I&E services, recognized for its size, expertise, and strong reputation in the industry. The company specializes in large-scale rehabilitation and commercial construction projects, serving a wide range of industries such as refineries, chemical plants, and industrial facilities. PLC Construction has a legacy of integrity and excellence since 1992 and has grown organically through quality work and strong client relationships. The leadership at PLC Construction brings over 35 years of experience in the construction industry, starting from humble beginnings and evolving into a trusted provider. The company has delivered thousands of successful projects, including multi-family developments and large-scale rehabilitations, across various industries. PLC Construction is dedicated to strengthening the communities they serve and is focused on building long-term relationships with repeat clients.
This guide covers systematic troubleshooting methods for sensors, control loops, electrical panels, automation systems, and communication networks. Design modifications, major rewiring projects, and complete system overhauls fall outside the scope of this article—those require dedicated engineering assessments. Our target audience includes maintenance technicians, plant engineers, and facility managers responsible for keeping instrumentation and electrical systems operating reliably across commercial projects and industrial facilities, including those in the construction industry where I&E careers are in high demand.
Direct answer: Effective troubleshooting of instrumentation and electrical systems requires a systematic approach combining proper diagnostic tools, signal analysis, component testing, and thorough documentation to isolate faults efficiently while maintaining safety protocols throughout the repair process.
By working through this guide, you will develop these essential capabilities:
- Diagnostic techniques for identifying sensor drift, signal degradation, and electrical faults
- Safety protocols including lockout/tagout procedures and arc flash protection
- Documentation methods for trending analysis and pattern recognition
- Preventive maintenance strategies that reduce unplanned downtime by 20-30%
- Tool selection expertise for matching equipment to specific troubleshooting scenarios
For those interested in launching or advancing a career in instrumentation and electrical technology, the College of the Mainland offers an Instrumentation & Electrical (I&E) Technology program. This program provides flexible educational pathways, including a Level I Certificate for entry-level technician roles, a Level II Certificate for advanced industrial positions, and an Associate of Applied Science (AAS) degree for skilled technician and technologist roles. Students benefit from hands-on training in installing, maintaining, and troubleshooting complex instrumentation and electrical systems, and the curriculum is designed to help them upgrade their skills and move from entry-level to highly skilled positions in the field.
Modern I&E work relies heavily on advanced technology, making up-to-date technical knowledge and skills essential for success in this dynamic industry.
Understanding Instrumentation and Electrical System Fundamentals
Instrumentation and electrical engineering form the “E&I” backbone of manufacturing and process plants. These skills are in high demand across industries such as refineries, chemical plants, and industrial facilities. Instrumentation engineering specializes in the measurement and control of process variables such as temperature, pressure, flow, and level, while electrical engineering focuses on the generation, distribution, and utilization of power. Instrumentation involves using sensors, transducers, and transmitters to measure variables like temperature, pressure, flow, and level. Electrical engineering focuses on the generation, distribution, and utilization of power. Instrumentation and electrical systems combine sensors, controllers, and actuators to regulate industrial processes, ensuring safety, efficiency, and quality.
Instrumentation and electrical systems form the backbone of industrial process control, where instrumentation devices measure and monitor physical properties like pressure, temperature, and flow, while electrical systems provide the power distribution necessary to operate these instruments and drive mechanical equipment. Instrumentation and electrical (I&E) work leverages advanced technology and automation, setting it apart from other types of engineering by requiring broad expertise in multiple technologies and troubleshooting, rather than focusing on a single component or discipline. Understanding how these domains interconnect is essential for any technician performing troubleshooting, because failures in one area frequently cascade into the other—voltage fluctuations can disrupt sensor accuracy, while instrumentation faults may overload electrical circuits.
Systematic troubleshooting matters because these system interdependencies mean isolated fixes rarely solve problems permanently. The expertise of skilled trades professionals is crucial for maintaining and troubleshooting these advanced systems, ensuring reliable operation and high-quality project delivery. A strong focus on understanding both instrumentation and electrical principles enables technicians to trace issues to their true root causes rather than treating symptoms repeatedly.
Core System Components
Instrumentation involves using sensors, transducers, and transmitters to measure variables like temperature, pressure, flow, and level. Electrical engineering focuses on the generation, distribution, and utilization of power. Instrumentation and electrical systems combine sensors, controllers, and actuators to regulate industrial processes, ensuring safety, efficiency, and quality.
Sensors and transmitters serve as the primary detection elements in control systems, converting physical measurements into electrical signals. Pressure transmitters, temperature sensors like RTDs and thermocouples, and flow meters each operate on distinct principles—thermocouples generate voltage from metal junction temperature differentials, while RTDs measure resistance changes. Control valves then act on these signals, modulating process flows based on controller outputs. Electrical panels house the power distribution, protection devices, and programmable logic controllers that tie everything together.
Typical instrumentation and electrical (I&E) jobs include electrical installation, testing, troubleshooting, and automation activities, all of which are essential for maintaining and optimizing industrial systems.
For troubleshooting purposes, component understanding enables faster problem identification. When you know that an RTD’s lead wire resistance adds 0.1-1 ohm error per 100 feet, you can immediately suspect wiring issues when readings drift upward over time. Similarly, recognizing that control valve actuators require specific supply pressures helps isolate pneumatic versus electrical faults.
Signal Types and Communication Protocols
The 4-20mA current loop remains the industry standard for analog signal transmission, where 4mA represents zero measurement and 20mA represents full scale—this “live zero” design allows technicians to distinguish between a true zero reading and a broken wire. Digital communications including HART, Modbus, and Foundation Fieldbus overlay additional diagnostic data on these signals, enabling remote monitoring and configuration. Discrete signals handle on/off states for switches, alarms, and safety interlocks.
Signal analysis reveals system health in ways visual inspection cannot. A loop drawing less than 4mA indicates an open circuit or power supply problem. Erratic readings with 50-60 Hz noise suggest electromagnetic interference from nearby motors. Understanding these relationships transforms abstract symptoms into actionable diagnostic paths, which leads us to examine the specific tools and methodologies used for systematic diagnosis.
Diagnostic Methodology and Tools
Diagnostic Philosophy
Building on the system fundamentals above, effective troubleshooting requires both proper equipment and a disciplined methodology. Our commitment to high quality work, excellence, and integrity ensures that every diagnostic and troubleshooting process is performed to the highest standards. The right diagnostic tools allow technicians to measure what they cannot see directly, while structured procedures ensure consistent results regardless of which team member performs the work.
Building Lasting Partnerships
Thoughtful craftsmanship and a focus on delivering successful projects are at the core of our approach, helping us build lasting partnerships with clients, architects, and consulting specialists.

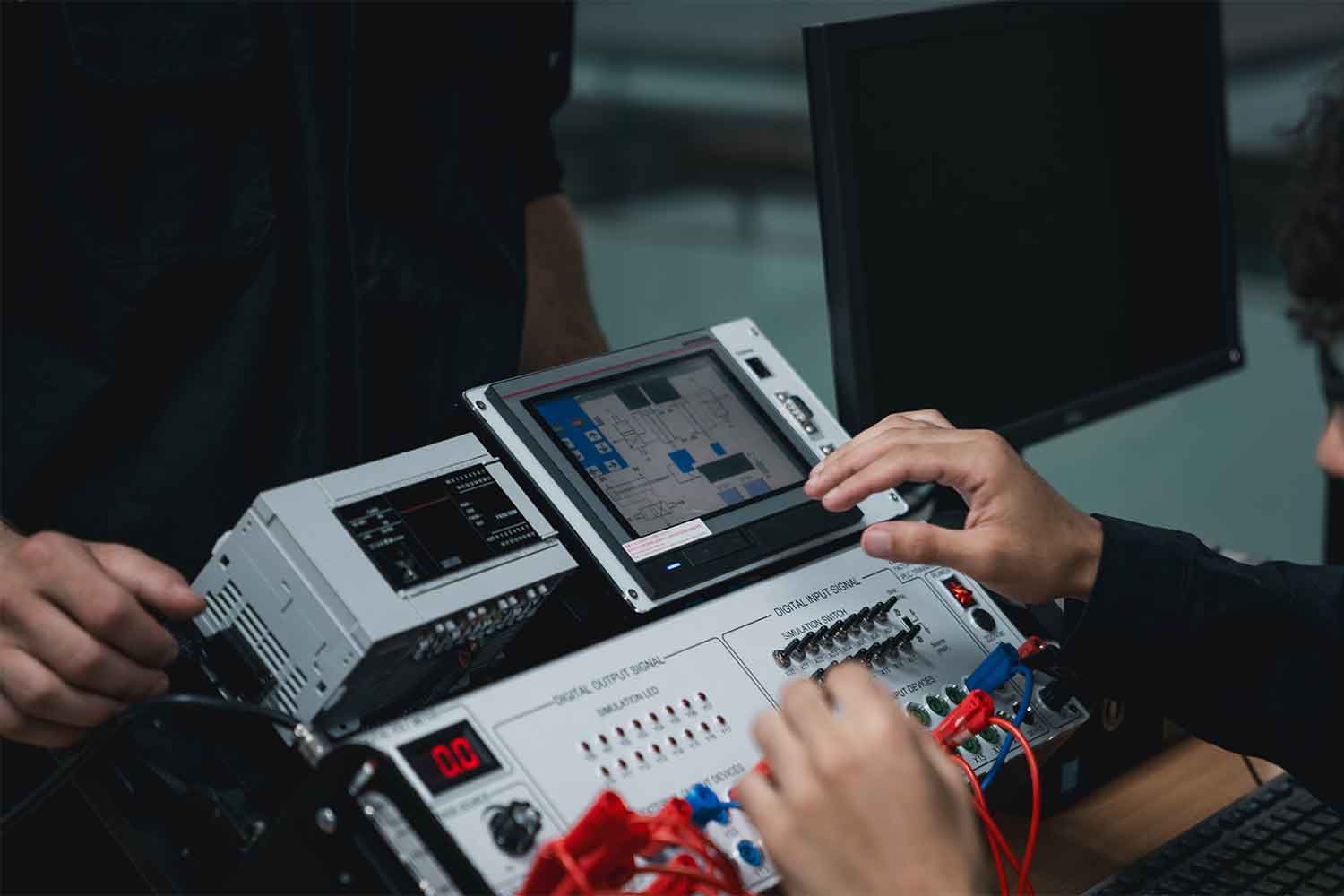

Essential Diagnostic Equipment
A quality digital multimeter forms the foundation of any instrumentation technician’s toolkit, measuring voltage, current, and resistance with 0.1% accuracy that far exceeds older analog instruments. Loop calibrators inject precise 4-20mA signals to verify controller response and simulate sensor outputs during isolation testing. Oscilloscopes capture fast transients and communication waveforms that multimeters miss, essential for diagnosing intermittent faults in automation systems. Infrared thermometers and thermal cameras identify loose electrical connections and overloaded components through non-contact temperature measurement, detecting problems before they cause failures.
Safety Protocols and Lockout Procedures
Lockout/tagout (LOTO) procedures protect technicians from unexpected equipment energization during troubleshooting and repair activities. Before working on electrical equipment, isolate all energy sources, apply personal locks, and verify zero energy state using your multimeter—never trust that someone else completed these steps. Arc flash protection requires appropriate PPE rated for the incident energy level at each electrical panel, with boundaries clearly marked per NFPA 70E requirements. Confined space protocols apply when accessing instrument installations in tanks, vessels, or underground vaults, requiring atmospheric testing and standby personnel.
Documentation and Trending Analysis
Maintaining detailed troubleshooting logs transforms individual repairs into organizational knowledge that accelerates future diagnostics. Record symptoms, tests performed, measurements obtained, and final resolutions in a searchable format accessible to the entire maintenance team. Historical data analysis reveals patterns invisible in single incidents—gradual sensor drift, recurring failures on specific equipment, or correlations with environmental conditions. Industry data indicates that 35% of instrumentation problems trace to wiring issues while 25% stem from sensor burnout, and your facility’s documented history will reveal whether these benchmarks match your experience.
These diagnostic foundations—proper tools, safety protocols, and documentation discipline—prepare you for the structured troubleshooting procedures that follow.
Looking for an EPC Company that does it all from start to finish, with in house experts?
Step-by-Step Troubleshooting Procedures
With diagnostic methodology established, applying a structured approach to actual fault isolation maximizes efficiency and ensures thorough investigation. As a full-service, self-performing general contractor, PLC Construction leverages in-house trades and comprehensive construction services to deliver high-quality results. Random component swapping wastes time and money, while systematic procedures—supported by the expertise of self-performed trades and dedicated in-house teams—identify root causes even in complex, interconnected systems, ensuring reliable project delivery.
Systematic Problem Identification Process
Use this structured approach whenever symptoms suggest instrumentation or electrical system problems, adapting the sequence based on initial findings:
- Initial assessment: Gather all available information including operator reports, alarm histories, and recent maintenance activities before touching any equipment
- Symptom analysis: Distinguish between complete failure (zero output, no response) and degraded performance (drift, noise, intermittent operation) to narrow possible causes
- Component isolation: Use loop calibrators to inject known signals at various points, determining whether sensors, transmitters, wiring, or controllers are contributing to the problem
- Signal tracing: Follow the signal path from sensor through conditioners and controllers to final elements, measuring at each junction point
- Root cause identification: Once the faulty component is located, determine why it failed—environmental exposure, installation error, age, or external influence
- Verification and documentation: After repair, verify normal operation under actual process conditions and document the complete troubleshooting process for future reference
Troubleshooting Method Comparison
Method | Best Use Case | Time Required | Skill Level |
Component substitution | Known good spare available, single suspected component | 15-30 minutes | Entry level |
Signal injection | Control loop problems, intermittent faults | 30-60 minutes | Technician with calibration equipment |
Loop testing | Complete circuit verification, commissioning | 1-2 hours | Experienced instrumentation technician |
Thermal analysis | Electrical connection problems, overloaded equipment | 15-45 minutes | Basic training with IR equipment |
Component substitution offers the fastest resolution when spares are available and symptoms clearly point to a single device. However, this method risks masking underlying problems that will damage the replacement component. Signal injection using loop calibrators provides more diagnostic information, isolating whether the sensor, wiring, or controller is at fault. Loop testing verifies the complete signal path and should be performed during commissioning and after major repairs. Thermal analysis excels at finding loose connections and overloaded conductors before they cause failures.
Selecting the appropriate method depends on available time, spare parts inventory, and the specific symptoms observed—which brings us to the most common problems technicians encounter in the field.
Common Problems and Solutions
Sensor Drift and Calibration Issues
Sensor drift manifests as gradual deviation from true values, often unnoticed until readings become obviously wrong or process quality suffers. Environmental exposure—temperature extremes, corrosive atmospheres, and vibration—degrades sensor sensitivity over time. Verify calibration using certified reference standards traceable to national laboratories. RTDs typically maintain ±0.1°C accuracy with proper lead wire compensation, while thermocouples may drift several degrees without periodic verification. Implement calibration schedules based on manufacturer recommendations and your documented failure history, adjusting intervals for harsh environments that reduce component lifespan by up to 50%.
Control Loop Instability
Oscillating process values, hunting control valves, and inability to maintain setpoints indicate control loop problems that may originate in instrumentation, electrical systems, or controller tuning. First verify that sensors and transmitters are providing accurate, noise-free signals—a noisy temperature input causes the controller to chase false variations. Check control valve response by commanding step changes and observing actual position feedback. If instrumentation and final elements test correctly, adjust PID tuning parameters systematically, documenting each change. Ground loops introducing 50-60 Hz noise are resolved by shielded cabling with single-point grounding, reducing interference by up to 90 dB.
Electrical Connection Problems
Loose connections cause intermittent failures, overheating, and increased resistance that degrades signal quality. Thermal imaging identifies hot spots at terminal blocks, motor connections, and panel feeds. Corrosion appears as discolored terminals and increased resistance measurements. Systematic inspection requires removing covers, checking torque on all terminals per manufacturer specifications, and cleaning or replacing corroded components. In corrosive environments, apply protective coatings and specify appropriate enclosure ratings during installation to prevent recurrence.
Communication Network Failures
Modern automation systems rely on digital networks connecting programmable logic controllers, distributed I/O, and operator interfaces. Network failures may affect single devices or entire segments depending on topology and fault location. Begin with physical layer verification—cable continuity, proper termination, and correct shield grounding. Protocol-specific diagnostic tools identify communication errors, collisions, and addressing conflicts. Electromagnetic interference from variable frequency drives or welding equipment can introduce errors that appear randomly; routing network cables away from power conductors and using shielded protocols like Profinet reduces susceptibility.
Addressing these common problems proactively through preventive maintenance prevents the emergency repairs that disrupt production and strain maintenance resources.
Conclusion and Next Steps
Effective troubleshooting of instrumentation and electrical systems combines fundamental understanding, proper tools, systematic methodology, and thorough documentation. PLC Construction approaches every project with a focus on providing thoughtful craftsmanship, excellence, and integrity, ensuring high-quality outcomes and trusted results. The interdependencies between these domains mean that technicians who develop expertise in both areas resolve problems faster and prevent recurrence more effectively than those with narrow specialization. Industry data confirms that 60% of troubleshooting success stems from this multidisciplinary approach.
Implement these immediate actions to improve your facility’s troubleshooting capabilities:
- Establish standard troubleshooting procedures documented and accessible to all maintenance team members
- Create diagnostic tool inventory including calibrated multimeters, loop calibrators, and thermal imaging equipment
- Implement preventive maintenance schedules based on manufacturer recommendations and your facility’s operating environment
- Train team members on both instrumentation and electrical fundamentals, expanding in house capabilities for self performed trades and leveraging skilled trades for superior project delivery at your site
- Document all troubleshooting activities to build historical data supporting pattern recognition and predictive maintenance
As a full-service GC with deep expertise in the Midwest, PLC Construction is dedicated to building lasting partnerships with clients and industry professionals. Our commitment to integrity, excellence, and skilled trades ensures every project site benefits from our comprehensive capabilities and regional experience.
For continued development, explore advanced topics including predictive maintenance using IIoT sensors and machine learning analytics, which can predict electrical failures 48-72 hours in advance with 95% accuracy. Condition monitoring systems provide continuous equipment health assessment that catches problems before they cause unplanned outages.
Additional Resources
Recommended Calibration Schedules:
- Pressure transmitters: 12-month intervals, 6 months in harsh environments
- Temperature sensors (RTD/thermocouple): 12-month verification, replacement based on drift trends
- Flow meters: Per manufacturer specification, typically 12-24 months
- Control valves: Annual stroke testing, 3-year complete overhaul
Standard Signal Ranges Reference:
- 4-20mA loops: 4.00mA = 0%, 20.00mA = 100%, <3.8mA indicates fault
- 1-5V signals: Common for local indicators and recorders
- RTD resistance: Pt100 = 100Ω at 0°C, 138.5Ω at 100°C
- Thermocouple voltage: Type K approximately 4mV/100°C
Emergency Escalation Protocols:
- Document primary contacts for critical system support including automation vendors and control systems specialists
- Maintain current contact information for consulting specialists in specialized equipment
- Establish clear criteria for when to escalate versus continue troubleshooting internally
- Keep spare parts inventory for critical instrumentation and electrical equipment that would halt operations if failed
